Suzuki GSX-R 1000 Service Manual: Clutch control system components

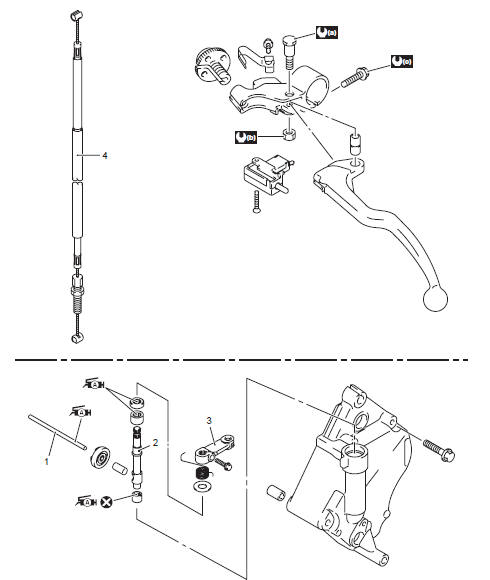

Suzuki GSX-R. Clutch control system components



  1. Push rod
  2. Clutch release camshaft
  3. Clutch release arm
  4. Clutch cable
  5. 1 Nm (0.1 Kgf-m, 0.7
    Lbf-ft)
  6. 6 Nm
    (0.6 Kgf-m, 4.5 Lbf-ft)
  7. 10 Nm
    (1.0 Kgf-m, 0.7 Lbf-ft)

Apply grease
Do not reuse.

Clutch cable removal and installation
Removal Remove the left side cowling. Refer to exterior parts removal and installation in section 9d .  Disconnect the clutch cable from the clutch lever. Refer to handlebar removal ...

Clutch components
Clutch pressure plate Clutch push piece No. 1 Drive plate (8 pcs.) No. 3 Driven plate (0 2 pcs.) No. 1 Driven plate (5 7 pcs.) No. 2 Driven plate (1 pc.) ...
