Suzuki GSX-R 1000 Service Manual: Continuity check

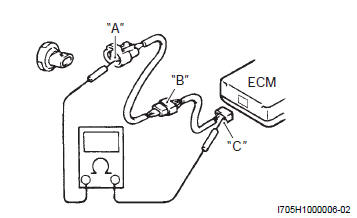

- Measure resistance across coupler “b” (between “a”
and “c” in figure).
If no continuity is indicated (infinity or over limit), the circuit is open between terminals “a” and “c”.

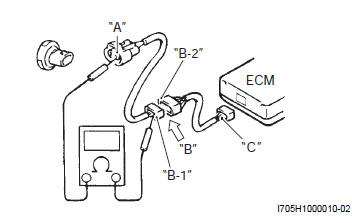

- Disconnect the coupler “b” and measure resistance
between couplers “a” and “b-1”.
If no continuity is indicated, the circuit is open between couplers “a” and “b-1”. If continuity is indicated, there is an open circuit between couplers “b-2” and “c” or an abnormality in coupler “b-2” or coupler “c”.
Open circuit check
Possible causes for the open circuit are as follows. As
the cause can exist in the connector/coupler or terminal,
they need to be checked carefully.
Loose connection of connector/coupler.
...
Voltage check
If voltage is supplied to the circuit being checked, voltage
check can be used as circuit check.
With all connectors/couplers connected and voltage
applied to the circuit being checked, m ...
Other materials:
Ap sensor removal and installation
Removal
Remove the front seat. Refer to “exterior parts
removal and installation” in section 9d (page 9d-
6).
Disconnect the starter relay (1) from the holder.
Disconnect the coupler (2) and remove the ap
sensor (3).
Installation
Install the ap sensor in the rever ...
Starter relay inspection
Inspect the starter relay in the following procedures:
remove the starter relay. Refer to “starter relay removal and
installation” .
Apply 12 v to “a” and “b” terminals and check for
continuity between the positive and negative
terminals using the multi-circuit tester. If th ...
DTC “c21” (p0110-h/l): iat sensor circuit
malfunction
Detected condition and possible cause
Detected condition
Possible cause
C21
Output voltage is not with in the following
range.
0.15 V ≤ Sensor voltage < 4.85 V
Iat sensor circuit open or short.
Iat sensor malfunction.
Ec ...
