Suzuki GSX-R 1000 Service Manual: Diagnostic information and procedures

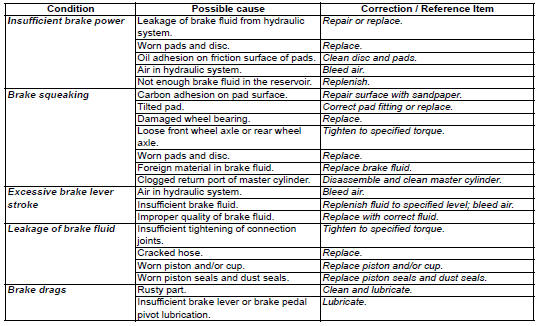

Brake symptom diagnosis

Suzuki GSX-R. Brake symptom diagnosis


Rear brake hose routing diagram
Hose clamp : face the clamp end backward. Stopper : after the brake hose union has contacted to the stopper, tighten the union bolt. Brake pad pin Plug ...

Repair instructions
Brake pedal height inspection and adjustment Refer to “brake system inspection” in section 0b . ...

Other materials:

Combination meter inspection
Led inspection Check that the leds “a” (fi, fuel, engine rpm, oil pressure/engine coolant, immobilizer (e-02, 19, 24, 51) and meter panel illumination) immediately light up when the ignition switch is turned on. Check that the other leds “b” (neutral, high-beam and turn signal indicator ligh ...

Evaporative emission control system removal and installation (only for e-33)
Hose removal Lift and support the fuel tank. Refer to “fuel tank removal and installation” in section 1g (page 1g- 9).  Remove the frame cover assembly. Refer to “exterior parts removal and installation” in section 9d .  Remove the evap hoses as shown in the evap canister h ...

Pair system inspection
Inspect pair system every 12 000 km (7 500 miles, 24 months) Inspect the pair (air supply) system periodically. Refer to “pair system inspection” in section 1b . Throttle valve synchronization Inspect throttle valve synchronization initially at 1 000 km (600 miles, 2 months) (e-33 only) and ...
