Suzuki GSX-R 1000 Service Manual: Handlebar components

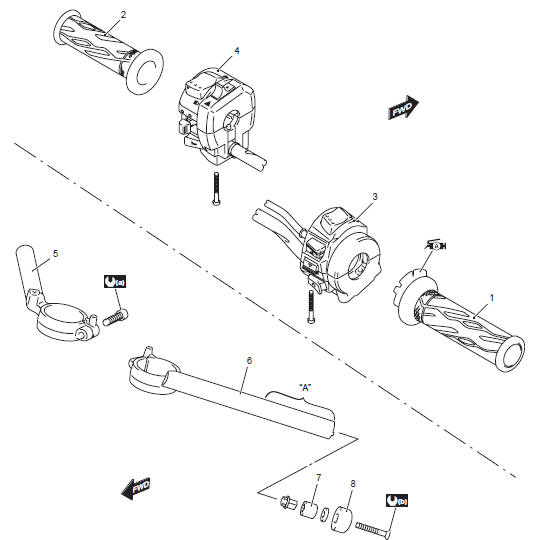

Suzuki GSX-R. Handlebar components



  1. Throttle grip
  2. Grip rubber
  3. Right handlebar switch box
  4. Left handlebar switch box
  5. Right handlebar
  6. Left handlebar
  7. Handlebar expander
  8. Handlebar balancer
  9. Apply handle grip bond.
  10. 23
    Nm (2.3 Kgf-m, 16.5 Lbf-ft)
  11. 5.5 Nm
    (0.55 Kgf-m, 4.0 Lbf-ft)

Apply grease.

Repair instructions
...

Handlebar removal and installation
Removal Remove the following parts from the left handlebar.  left handlebar switch box (1)  handlebar balancer (2)  grip rubber (3)  clutch cable (4) Remo ...
