Suzuki GSX-R 1000 Owners Manual: Lubrication points

Proper lubrication is important for smooth operation and long life of each working part of your motorcycle and also for safe riding. It is a good practice to lubricate the motorcycle after a long rough ride and after getting it wet it in the rain or after washing it. Major lubrication points are indicated below.

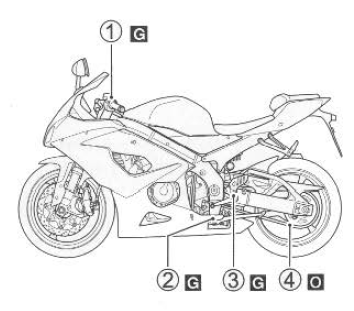

Suzuki GSX-R. Lubrication points

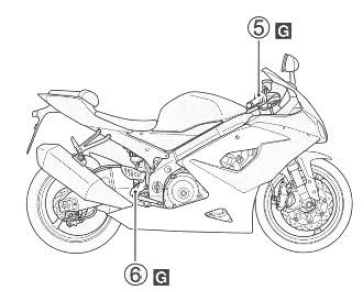

Suzuki GSX-R. Lubrication points


D.... Motor oil G .... Grease

  1. ... Clutch lever holder
  2. ... Side stand pivot and spring hook
  3. ... Gearshift lever pivot and footrest pivot
  4. ... Drive chain
  5. ... Brake lever holder
  6. ... Brake pedal pivot and footrest pivot
Steering damper maintenance
Keep the steering damper shaft 1 clean at all times.  Wipe off any oil residue with a cloth. Do not confuse the grease-like residue on the steering damper's shaft with an oil le ...

Batiery
The battery is located under the front seat. Remove the front seat by referring to the seat lock and helmet holders section. This battery is sealed type and requires no maintenance. Have you ...

Other materials:

Starter motor inspection
Refer to starter motor disassembly and assembly . Carbon brush Inspect the carbon brushes for abnormal wear, cracks or smoothness in the brush holder. If either carbon brush is defective, replace the brush holder set with a new one. Measure the length a of the carbon brushes using a v ...

Exterior parts removal and installation
Side frame cover Removal Note the left and right side frame covers are installed symmetrically and therefore the removal/installation procedure for one side is the same as that for the other side. Remove the bolt (1).  Remove the side frame cover (2). ...

Oil cooler / oil cooler hose inspection and cleaning
Refer to exterior parts removal and installation in section 9d . Oil cooler hose inspection Inspect the oil cooler hoses for any damage and oil leakage. If any defects are found, replace the oil cooler hose with a new one. Oil cooler inspection Remove the oil cooler guard (1). ...
