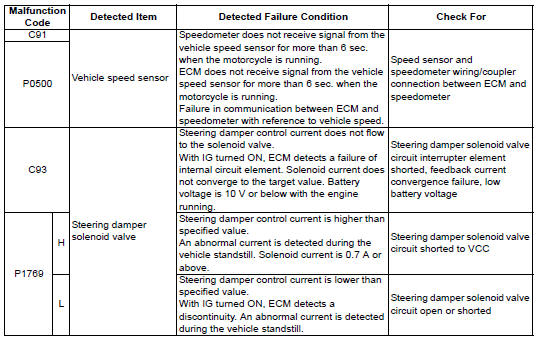

Suzuki GSX-R 1000 Service Manual: Malfunction code and defective condition table

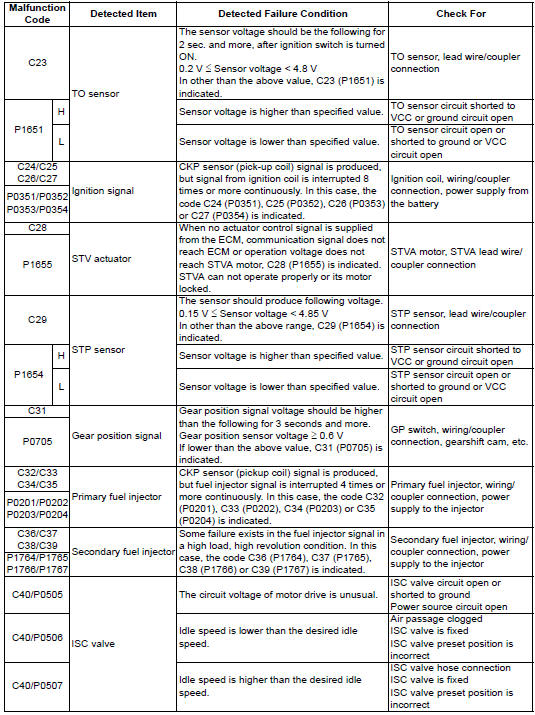

Suzuki GSX-R. Malfunction code and defective condition table


Suzuki GSX-R. Malfunction code and defective condition table


Suzuki GSX-R. Malfunction code and defective condition table


Suzuki GSX-R. Malfunction code and defective condition table


* : Immobilizer system equipped model only.

Fi system troubleshooting
Customer complaint analysis Record details of the problem (failure, complaint) and how it occurred as described by the customer. For this purpose, use of such an inspection form such as following ...

DTC “c11” (p0340): cmp sensor circuit malfunction
Detected condition and possible cause Detected condition Possible cause The signal does not reach ecm for 3 sec. Or more, after receiving the starter signal. ...

Other materials:

Ckp sensor removal and installation
Removal Remove the clutch cover. Refer to “clutch removal” in section 5c .  Remove the ckp sensor (1). Installation Install the ckp sensor in the reverse order of removal. Refer to “clutch installation” in section 5c . Iap sensor inspection Refer to “dtc “c13” (p0105-h/l): ia ...

Wiring harness routing diagram
Wiring harness no. 2 Tapping clamp : insert the clamp from the front side. Place the turn signal and position light couplers in front of the clamp. Steel clamp : clamp the wiring harness at the blue taping point. Bend the steel clamps to the front side. ...

Rear brake light switch inspection and adjustment
Check the rear brake light switch so that the brake light will come on just before pressure is felt when the brake pedal is depressed. If the brake light switch adjustment is necessary, turn the adjuster nut (1) in or out while holding the brake pedal. Brake fluid level check Refer to “bra ...
