Suzuki GSX-R 1000 Service Manual: No spark or poor spark

Troubleshooting

Note

check that the transmission is in neutral and the engine stop switch is in the “run” position. Grasp the clutch lever. Check that the fuse is not blown and the battery is fully-charged before diagnosing.

Suzuki GSX-R. Troubleshooting

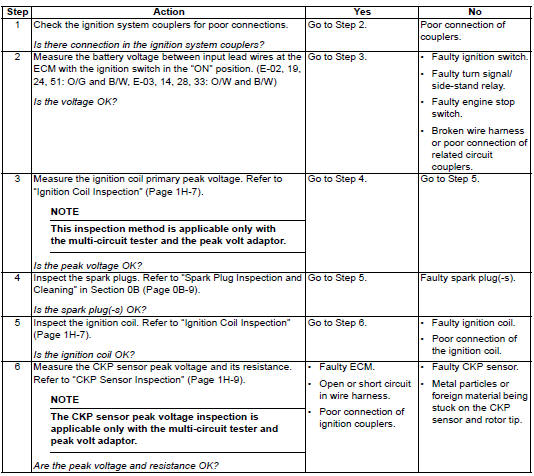

Ignition system symptom diagnosis
...

Repair instructions
...

Other materials:

DTC “c12” (p0335): ckp sensor circuit malfunction.
Detected condition and possible cause Detected condition Possible cause The signal does not reach ecm for 3 sec. Or more, after receiving the starter signal. Metal particles or foreign material being stuck on the ckp sensor and rotor tip.  Ckp ...

Schematic and routing diagram
Fuel tank drain hose and breather hose routing diagram Fuel tank water drain hose Fuel tank breather hose no. 1 Fuel tank breather hose no. 2 Fuel tank breather hose no. 3 3-Way joint Frame White marking Set the hose end to the root of tank nippl ...

Front footrest bracket construction
Footrest bracket bolt Rear brake master cylinder mounting bolt Footrest guard bolt Footrest bracket no. 1 (Lh) Footrest bracket no. 1 (Rh) Footrest Footrest holder Rear brake pedal Footrest bracket no. 2 (Lh) Footrest bracket no. 2 (Rh) Ban ...
