Suzuki GSX-R 1000 Service Manual: Reflex reflector construction

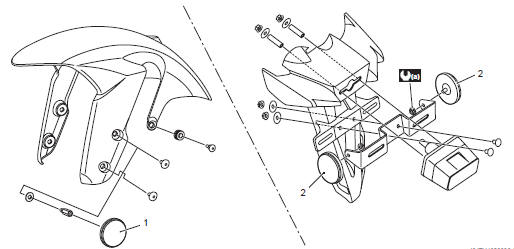

Suzuki GSX-R. Reflex reflector construction


  1. Front reflex reflector x 2 pcs. (For e-03, 24, 28, 33)
  2. Rear reflex reflector x 2 pcs. (For e-03, 28, 33)
  3. 1.8
    N·m (0.18 Kgf-m, 1.5 Lbf-ft)
Rear turn signal light bulb replacement
Caution when you touch the bulb with your bare hands, clean the bulb with a cloth moistened with alcohol or soap water to prevent premature bulb failure. Remove the rear tu ...

Turn signal / side-stand relay inspection
Refer to “electrical components location” in section 0a . Note make sure that the battery is fully charged. Before removing the turn signal/side-stand relay, check the operation of t ...

Other materials:

Storage procedure
If your motorcycle is to be left unused for an extended period of time, it needs special servicing requiring appropriate materials, equipment and skill. For this reason, suzuki recommends that you trust this maintenance work to your suzuki dealer. If you wish to service the machine for stora ...

Evaporative emission control system removal and installation (only for e-33)
Hose removal Lift and support the fuel tank. Refer to “fuel tank removal and installation” in section 1g (page 1g- 9).  Remove the frame cover assembly. Refer to “exterior parts removal and installation” in section 9d .  Remove the evap hoses as shown in the evap canister h ...

Radiator reservoir tank removal and installation
Removal Remove the right side cowling. Refer to “exterior parts removal and installation” in section 9d .  Disconnect the reservoir tank inlet hose (1) from the reservoir tank (2) and drain the engine coolant.  Remove the reservoir tank (2). Disconnect the reservoir tank ove ...
