Suzuki GSX-R 1000 Service Manual: Specifications

Service data

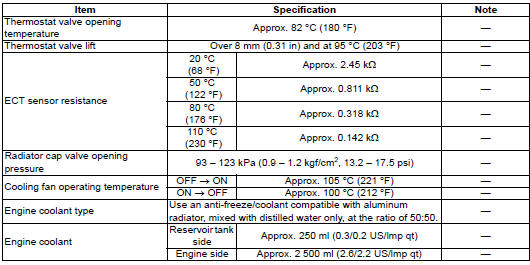

Thermostat + radiator + fan + coolant


Tightening torque specifications

Suzuki GSX-R. Tightening torque specifications


Note

the specified tightening torque is described in the following.

“Water hose routing diagram”  “water pump components”  “water pump construction”

Reference

: for the tightening torque of fastener not specified in this section, refer to “tightening torque list” in section 0c .

Water pump related parts inspection
Refer to “water pump disassembly and assembly” . Mechanical seal Visually inspect the mechanical seal for damage, with particular attention given to the sealing face. Replace the mechanical seal ...

Special tools and equipment
Recommended service material Note required service material is also described in the following. “Water hose routing diagram”  “water pump components”  “water pump con ...

Other materials:

Oil jet removal and installation
Piston cooling oil jet Removal Remove the engine assembly. Refer to “engine assembly removal” in section 1d .  Remove the crankshaft assembly. Refer to “engine bottom side disassembly” in section 1d (page 1d- 49).  Remove the piston cooling oil jets (1) from the upper cra ...

Throttle body removal and installation
Removal Remove the side cowlings. Refer to “exterior parts removal and installation” in section 9d (page 9d- 6).  Remove the air cleaner box. Refer to “air cleaner box removal and installation” .  Remove the clamps (1).  Disconnect the iap sensor (2) from the vacuum ...

Drive chain related parts inspection
Refer to “rear sprocket / rear sprocket mounting drum removal and installation” . Dust seal Inspect the dust seal for wear or damage. If any damage is found, replace the dust seal with a new one. Bearing Inspect the play of the sprocket mounting drum bearing by hand while it is in the dr ...
