Suzuki GSX-R 1000 Service Manual: Specifications

Service data

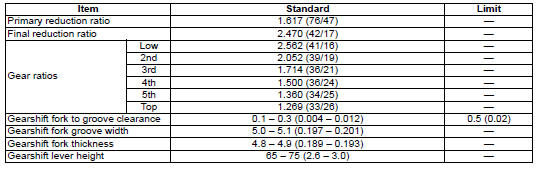

Drive train unit: mm (in) except ratio

Suzuki GSX-R. Service data


Tightening torque specifications

Suzuki GSX-R. Tightening torque specifications


Note

the specified tightening torque is described in the following.

“Transmission components”  “gearshift lever construction”  “gearshift shaft / gearshift cam plate components”  “gearshift shaft construction”

Reference

: for the tightening torque of fastener not specified in this section, refer to “tightening torque list” in section 0c .

Gearshift shaft oil seal / bearing removal and installation
Removal Remove the gearshift shaft. Refer to “gearshift shaft / gearshift cam plate removal and installation” .  Remove the gearshift shaft oil seal (1). Remove the bearings (2 ...

Special tools and equipment
Recommended service material Note required service material is also described in the following. “Transmission components”  “gearshift lever construction”  “gearshif ...

Other materials:

Exhaust pipe bolt and muffler bolt inspection
Tighten exhaust pipe bolts and muffler bolts initially at 1 000 km (600 miles, 2 months) and every 12 000 km (7 500 miles, 24 months) thereafter Check the exhaust pipe bolts and muffler bolts to the specified torque. Tightening torque exhaust pipe bolt (a): 23 n·m (2.3 Kgf-m, 16.5 Lbf-ft) muf ...

Exhaust emission control system description
The exhaust emission control system is composed of the pair system, exhaust control system, ho2 sensor, threeway catalyst system and isc system. The fresh air is drawn into the exhaust ports through the pair control solenoid valve and pair reed valves. The pair control solenoid valve is operat ...

Drive chain related parts inspection
Refer to “rear sprocket / rear sprocket mounting drum removal and installation” . Dust seal Inspect the dust seal for wear or damage. If any damage is found, replace the dust seal with a new one. Bearing Inspect the play of the sprocket mounting drum bearing by hand while it is in the dr ...
