Suzuki GSX-R 1000 Service Manual: Starter motor components

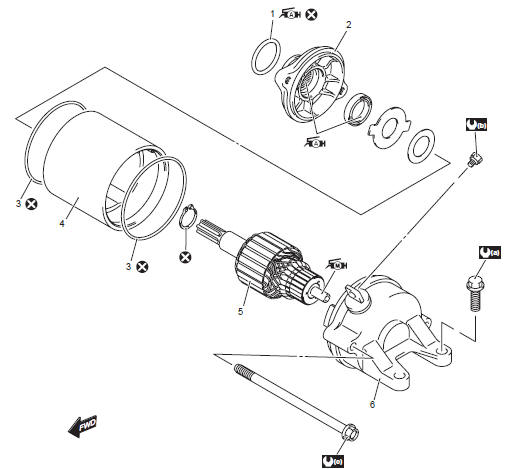

Suzuki GSX-R. Starter motor components



  1. O-ring
  2. Housing end (inside)
  3. O-ring
  4. Starter motor case
  5. Armature
  6. Housing end (outside)
  7. 10
    N·m (1.0 Kgf-m, 7.0 Lbf-ft)
  8. 4 N·m (0.4
    Kgf-m, 3.0 Lbf-ft)
  9. 5 N·m (0.5
    Kgf-m, 3.5 Lbf-ft)

Apply grease to sliding
surface
Apply moly paste to sliding
surface
Do not reuse

Repair instructions
...

Starter motor removal and installation
Removal Turn the ignition switch off and disconnect the battery (–) lead wire (1).  Lift and support the fuel tank. Refer to “fuel tank removal and installation” in section 1g (page 1g- ...
