Suzuki GSX-R 1000 Service Manual: Turn signal switch inspection

Inspect the turn signal switch in the following procedures:

  1.  remove the air cleaner box. Refer to “air cleaner box removal and installation” in section 1d .
  2.  Disconnect the left handlebar switch coupler (1).

    (Yellow)

Suzuki GSX-R. Turn signal switch inspection


  1. Inspect the turn signal switch for continuity with the tester. If any abnormality is found, replace the left handlebar switch assembly with a new one.

    Refer to “handlebar removal and installation” in section 6b .

Special tool : 09900–25008 (multi circuit tester
set)

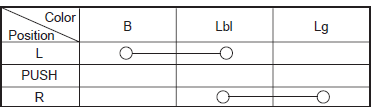

Tester knob indication continuity ( )


Suzuki GSX-R. Turn signal switch inspection


  1. After finishing the turn signal switch inspection, reinstall the removed parts.
Hazard switch inspection
Inspect the hazard switch in the following procedures:  remove the air cleaner box. Refer to “air cleaner box removal and installation” in section 1d .  Disconnect the left handleba ...

Dimmer / passing light switch inspection
Inspect the dimmer/passing light switch in the following procedures:  remove the air cleaner box. Refer to “air cleaner box removal and installation” in section 1d .  Disconnect th ...
