Suzuki GSX-R 1000 Service Manual: Water pump construction

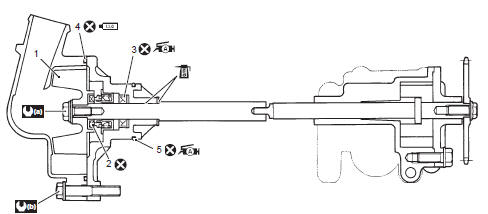

Suzuki GSX-R. Water pump construction



  1. Impeller
  2. Mechanical seal
  3. Oil seal
  4. O-ring
  5. O-ring
  6. 8
    N·m (0.8 Kgf-m, 6.0 Lbf-ft)
  7. 10 N·m
    (1.0 Kgf-m, 7.0 Lbf-ft)

Apply grease.


Apply engine coolant.


Apply molybdenum oil
solution.

Do not reuse.

Water pump components
Impeller Mechanical seal Oil seal O-ring O-ring 8 N·m (0.8 Kgf-n, 6.0 Ib-ft) 10 N·m (1.0 Kgf-n, 7.0 Ib-ft) 6 N·m (0.6 Kgf-n, 4.5 Ib-ft) ...

Water pump removal and installation
Removal Note before draining engine oil and engine coolant, inspect engine oil and coolant leakage between the water pump and crankcase. If engine oil is leaking, visually inspect t ...
