Suzuki GSX-R 1000 Service Manual: Country and area codes

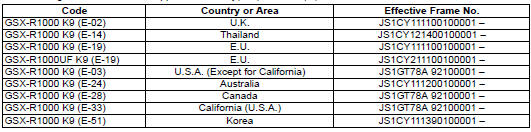

The following codes stand for the applicable country(-ies) and area(-s).

Suzuki GSX-R. Country and area codes


Wire color symbols

Suzuki GSX-R. Wire color symbols


Warning, caution and information labels location

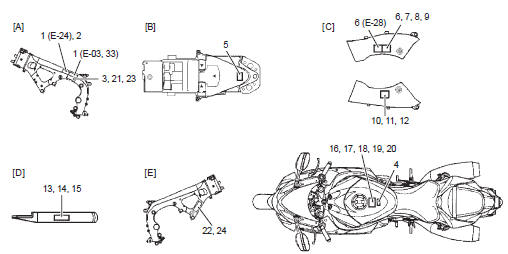

Suzuki GSX-R. Warning, caution and information labels location


  1. Noise label
  2. Information label
  3. Vacuum hose routing label
  4. Fuel information label
  5. Manual notice label
  6. Screen label (english)
  7. Screen label (french)
  8. Screen label (french/german/italian/swedish)
  9. Screen label (korean)
  10. Steering warning label (english)
  11. Steering warning label (french/german/english)
  12. Steering warning label (korean)
  13. Tire information label (english)
  14. Tire information label (french/german/english)
  15. Tire information label (korean)
  16. General warning label (english)
  17. General warning label (french)
  18. General warning label (english/french)
  19. General warning label (french/german/italian/swedish)
  20. General warning label (korean)
  21. Ices canada label
  22. I.D. Plate
  23. I.D. Label
  24. Safety plate
  25. Frame (lh)
  26. Rear fender, front
  27. Intake cover
  28. Chain case
  29. V
Cylinder identification
The four cylinders of this engine are identified as #1, 2, 3 and #4 cylinder, as counted from left to right (as viewed by the rider on the seat). ...

Component location
Electrical components location Ignition switch/immobilizer antenna Iat sensor Secondary fuel injector Primary fuel injector Iap sensor Evap system purge contro ...

Other materials:

Steering / steering damper removal and installation
Removal steering damper Turn the ignition switch off.  Disconnect the steering damper solenoid coupler (1). Remove the lower bracket cover (2). Remove the steering damper mounting nut (3) while holding the lock-nut (4). Remove the steering damper mounting bolt ( ...

Fuel injection system description
Gsx-r1000 motorcycles are equipped with a fuel injection system for emission level control. This fuel injection system is precision designed, manufactured and adjusted to comply with the applicable emission limits. With varying engine conditions, all of the fuel injection volumes are precisely ...

DTC Уc93Ф (p1769): steering damper solenoid valve circuit malfunction
Detected condition and possible cause Detected condition Possible cause C93 Steering damper control current does not flow to the solenoid valve. With ig turned on, ecm detects a failure of internal circuit element. Solenoid current does not converge to the ...
