Suzuki GSX-R 1000 Service Manual: Fuel pump components

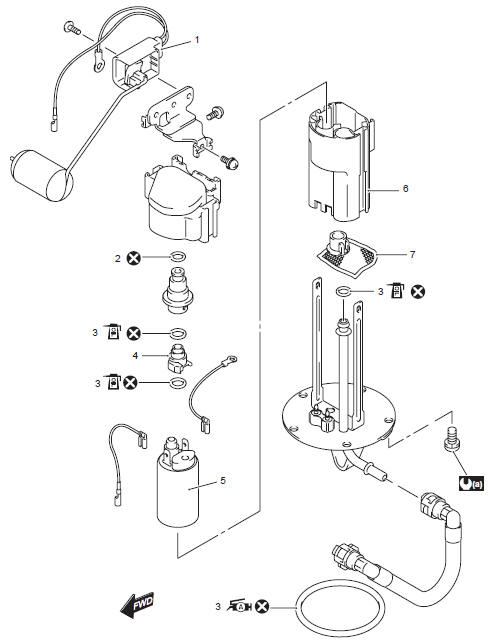

Suzuki GSX-R. Fuel pump components



  1. Fuel level gauge
  2. Fuel pressure regulator assembly
  3. O-ring
  4. Joint
  5. Fuel pump
  6. Fuel pump case
  7. Fuel mesh filter
  8. 10
    Nm (1.0 Kgf-m, 7.0 Lbf-ft)

Apply engine oil.


Apply grease.


Do not reuse.
