Suzuki GSX-R 1000 Service Manual: Ignition switch inspection

Inspect the ignition switch in the following procedures:

  1.  remove the air cleaner box. Refer to air cleaner box removal and installation in section 1d .
  2.  Disconnect the ignition switch lead wire coupler (1).

Suzuki GSX-R. Ignition switch inspection


  1. Inspect the ignition switch for continuity with a tester.

    If any abnormality is found, replace the ignition switch with a new one.

Special tool : 0990025008 (multi circuit tester
set)

Tester knob indication continuity ( )

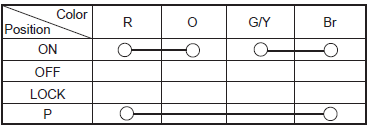

E-02, 19, 24, 51

Suzuki GSX-R. Ignition switch inspection

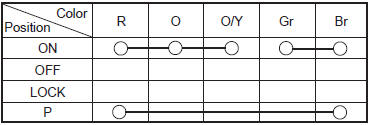

E-03, 14, 28, 33

Suzuki GSX-R. Ignition switch inspection


  1. After finishing the ignition switch inspection, reinstall the removed parts.

Ignition switch removal and installation

Refer to ignition switch removal and installation in section 1h .
