Suzuki GSX-R 1000 Service Manual: Isc valve preset and opening initialization

Suzuki GSX-R 1000 Service Manual / Engine / Engine electrical devices / Repair instructions / Isc valve preset and opening initialization

When removing or replacing the isc valve, set the isc valve to the following procedures:

  1.  turn the ignition switch on.
  2.  Set up the sds tool. (Refer to the sds operation manual for further details.)
  3.  Click the active control.
  4.  Click the isc learned value reset (1).

Suzuki GSX-R. Isc valve preset and opening initialization

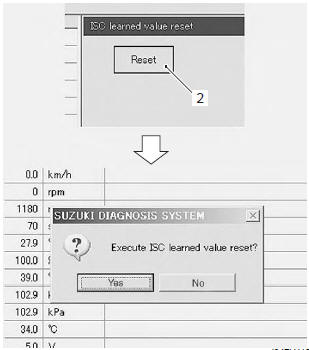

  1. Click the reset button (2) to clear the isc leaned value.

Suzuki GSX-R. Isc valve preset and opening initialization

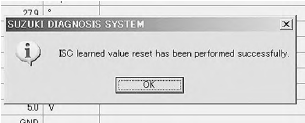

Note

the leaned value of the isc valve is set at preset position.

Suzuki GSX-R. Isc valve preset and opening initialization


  1. Close the sds tool and turn the ignition switch off.
Note

the isc valve opening initialization is automatically started after the ignition switch is turned off position.

Ho2 sensor inspection

Refer to dtc c44 (p0130/p0135): ho2 sensor (ho2s) circuit malfunction in section 1a (page 1a- 103).

Ho2 sensor removal and installation

Refer to heated oxygen sensor (ho2s) removal and installation in section 1b .

Gp switch inspection

Refer to side-stand / ignition interlock system parts inspection in section 1i .

Gp switch removal and installation

Refer to gear position (gp) switch removal and installation in section 5b .

Stv actuator removal and installation
Refer to throttle body disassembly and assembly in section 1d . Caution never remove the stva from the throttle body. Isc valve inspection Refer to dtc c40 (p0505 / p0506 / p ...

Specifications
Service data Fi sensors Tightening torque specifications Reference: for the tightening torque of fastener not specified in this section, refer to tightening torque list in section 0c . ...
