Suzuki GSX-R 1000 Service Manual: Rear lighting system construction

Suzuki GSX-R. Rear lighting system construction

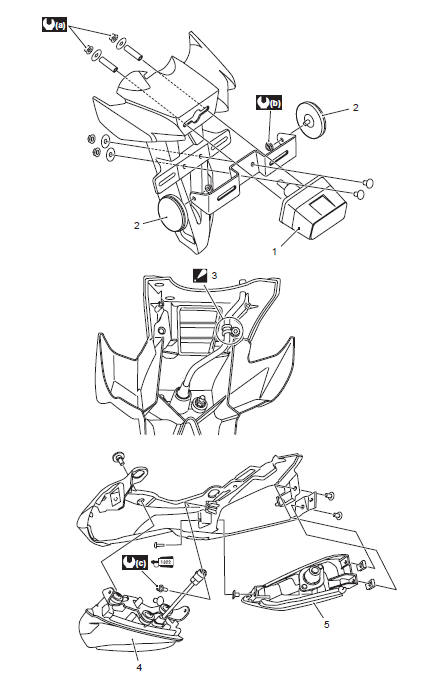

  1. License plate light assembly
  2. Reflex reflector (e-03, 28, 33 only)
  3. Clamp
    : clamp the license plate light lead wire so as not to be slack.
  4. Rear combination light
  5. Rear turn signal light assembly (lh/rh)
  6. 5
    N·m (0.5 Kgf-m, 3.5 Lbf-ft)
  7. 1.8 N·m
    (0.18 Kgf-m, 1.5 Lbf-ft)
  8. 2.8 N·m
    (0.28 Kgf-m, 2.0 Lbf-ft)

Apply thread lock to
thread part.

Front turn signal light bulb replacement
Caution when you touch the bulb with your bare hands, clean the bulb with a cloth moistened with alcohol or soap water to prevent premature bulb failure. Remove the turn si ...

Rear combination light removal and installation
Removal Remove the frame cover assembly. Refer to “exterior parts removal and installation” in section 9d .  Remove the clamps (1).  Disconnect the combination light coupler (2). ...
