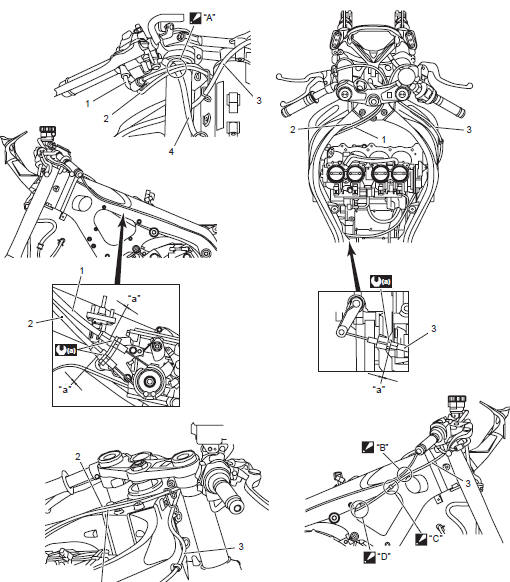

Suzuki GSX-R. Throttle cable routing diagram

Throttle cable no. 1
Throttle cable no. 2
Clutch cablev
Front brake hose
Pass
the throttle cables in front of the front brake hose.
Pass the
clutch cable above the right air intake pipe.
Clamp the
clutch cable at the white taping point and make sure it does not slip out of the clamped position when steering.

Cut off the excess tip of the clamp.
Pass the
clutch cable outside of the regulator/rectifier harness and water bypass hose.
4.5 Nm (0.45 Kgf-m, 3.0 Lbf-ft)
0 – 1 Mm (0 – 0.04 In)
