Suzuki GSX-R 1000 Service Manual: Special tools and equipment

Suzuki GSX-R 1000 Service Manual / Engine / Ignition system / Special tools and equipment

Recommended service material

Suzuki GSX-R. Recommended service material

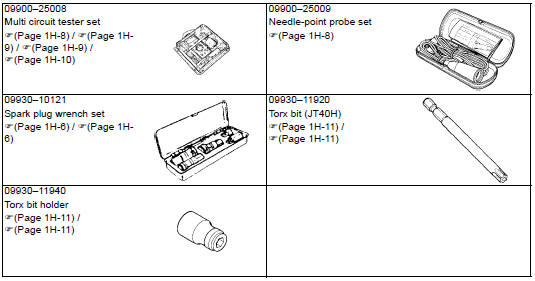

Special tool

Suzuki GSX-R. Special tool


Specifications
Service data Electrical unit: mm (in) Tightening torque specifications Reference: for the tightening torque of fastener not specified in this section, refer to “tightening torque list” i ...

Starting system
...

Other materials:

Ap sensor removal and installation
Removal Remove the front seat. Refer to “exterior parts removal and installation” in section 9d (page 9d- 6).  Disconnect the starter relay (1) from the holder. Disconnect the coupler (2) and remove the ap sensor (3). Installation Install the ap sensor in the rever ...

Stp sensor removal and installation
Removal Remove the throttle body. Refer to “throttle body removal and installation” in section 1d (page 1d- 10).  Remove the stp sensor (1) with the special tool. Special tool : 09930–11950 (torx wrench (5 mm)) Note prior to disassembly, mark the stp sensor’s origina ...

Ignition switch inspection
Inspect the ignition switch in the following procedures:  remove the air cleaner box. Refer to “air cleaner box removal and installation” in section 1d .  Disconnect the ignition switch lead wire coupler (1). Inspect the ignition switch for continuity with a tester. If ...
