Suzuki GSX-R 1000 Service Manual: Specifications

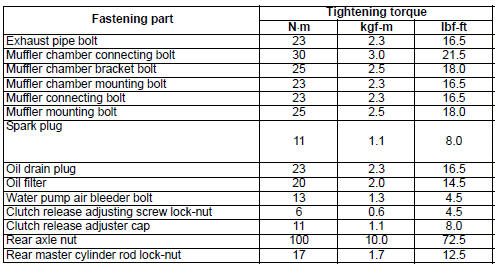

Tightening torque specifications
| Note the specified tightening torque is described in the following. “Chassis bolt and nut inspection” |
Reference
: for the tightening torque of fastener not specified in this section, refer to “tightening torque list” in section 0c .
Chassis bolt and nut inspection
Tighten chassis bolt and nut
initially at 1 000 km (600 miles, 2 months) and every
6 000 km (4 000 miles, 12 months) thereafter
Check that all chassis bolts and nuts are tightened to
their specifi ...
Special tools and equipment
Recommended service material
Note
required service material is also described in the following.
“Lubrication points”
Special tool
...
Other materials:
To sensor removal and installation
Removal
Remove the ap sensor. Refer to “ap sensor removal and installation” .
Disconnect the coupler (1) and remove the to
sensor (2).
Installation
Install the to sensor in the reverse order of removal.
Pay attention to the following point:
when installing the to s ...
Iap sensor removal and installation
Removal
Lift and support the fuel tank. Refer to “fuel tank
removal and installation” in section 1g (page 1g-
9).
Disconnect the coupler (1) and vacuum hose (2).
Remove the iap sensor (3) from the air cleaner box.
Installation
Install the iap sensor in the reverse ord ...
Schematic and routing diagram
Fuel tank drain hose and breather hose routing diagram
Fuel tank water drain hose
Fuel tank breather hose no. 1
Fuel tank breather hose no. 2
Fuel tank breather hose no. 3
3-Way joint
Frame
White marking
Set the
hose end to the root of tank nippl ...
