Suzuki GSX-R 1000 Service Manual: Steering damper construction

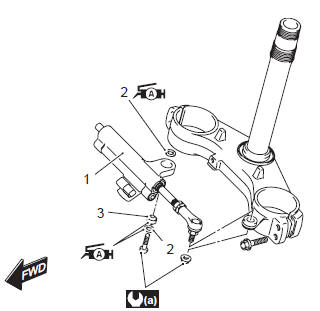

Suzuki GSX-R. Steering damper construction



  1. Steering damper
  2. Dust seal
  3. Bearing
  4. 23 N·m (2.3 Kgf-m, 16.5 Lbf-ft)

Apply grease.

Steering components
Steering stem head nut Steering stem upper bracket Steering stem lock-nut Washer Steering stem nut Dust seal cover Dust seal Steering stem upper bearing ...

Steering / steering damper removal and installation
Removal steering damper Turn the ignition switch off.  Disconnect the steering damper solenoid coupler (1). Remove the lower bracket cover (2). Remove the steering da ...
