Suzuki GSX-R 1000 Service Manual: Suspension general diagnosis

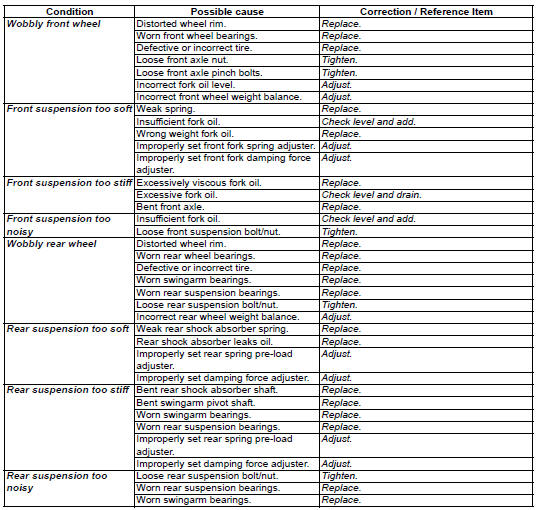

Suspension and wheel symptom diagnosis
Precautions
Precautions for suspension
Refer to “general precautions” in section 00 (page 00-1).
All
suspensions, bolts and nuts are an important part in that it could
affect the performance of v ...
