Suzuki GSX-R 1000 Service Manual: Crankcase emission control system description

Suzuki GSX-R 1000 Service Manual / Engine / Emission control devices / General description / Crankcase emission control system description

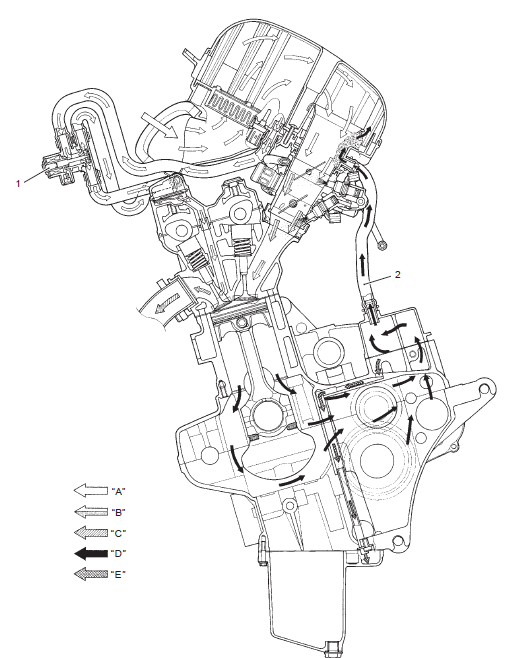

The engine is equipped with a pcv system to prevent discharging crankcase emissions into the atmosphere. Blow-by gas in the engine is constantly drawn into the crankcase, which is returned to the combustion chamber through the pcv (breather) hose, air cleaner and throttle body.

Suzuki GSX-R. Crankcase emission control system description


  1. Pair control solenoid valve
  2. Pcv hose
  3. Fresh air
  4. Fuel/air mixture
  5. Exhaust gas
  6. Blow-by gas
  7. Return oil
Fuel injection system description
Gsx-r1000 motorcycles are equipped with a fuel injection system for emission level control. This fuel injection system is precision designed, manufactured and adjusted to comply with the applicable ...

Exhaust emission control system description
The exhaust emission control system is composed of the pair system, exhaust control system, ho2 sensor, threeway catalyst system and isc system. The fresh air is drawn into the exhaust ports thro ...
