Suzuki GSX-R 1000 Service Manual: License plate light components

Suzuki GSX-R. License plate light components

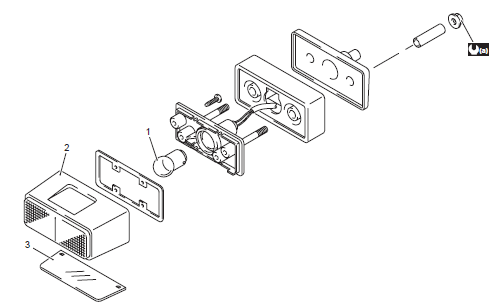

  1. License plate light bulb (12 v 5 w)
  2. Lens cover
  3. Lens
  4. 5
    N·m (0.5 Kgf-m, 3.5 Lbf-ft)
Rear combination light removal and installation
Removal Remove the frame cover assembly. Refer to “exterior parts removal and installation” in section 9d .  Remove the clamps (1).  Disconnect the combination light coupler (2). ...

License plate light removal and installation
Removal Remove the frame cover. Refer to “exterior parts removal and installation” in section 9d (page 9d- 6).  Disconnect the license plate light coupler (1). Remove the nuts ...
