Suzuki GSX-R 1000 Service Manual: Exhaust pipe bolt and muffler bolt inspection

Tighten exhaust pipe bolts and muffler bolts initially at 1 000 km (600 miles, 2 months) and every 12 000 km (7 500 miles, 24 months) thereafter

Check the exhaust pipe bolts and muffler bolts to the specified torque.

Tightening torque

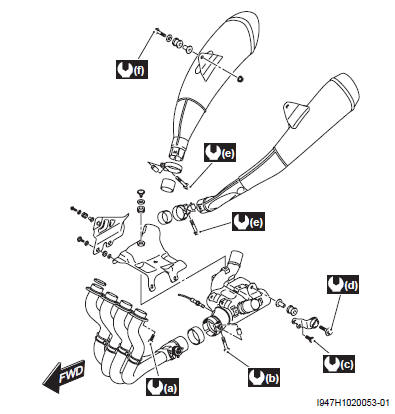

exhaust pipe bolt (a): 23 nm (2.3 Kgf-m, 16.5 Lbf-ft) muffler chamber connecting bolt (b): 30 nm (3.0 Kgf-m, 21.5 Lbf-ft)
muffler chamber bracket bolt (c): 25 nm (2.5 Kgf-m, 18.0 Lbf-ft)
muffler chamber mounting bolt (d): 23 nm (2.3 Kgfm, 16.5 Lbf-ft)
muffler connecting bolt (e): 23 nm (2.3 Kgf-m, 16.5 Lbf-ft)
muffler mounting bolt (f): 25 nm (2.5 Kgf-m, 18.0 Lbf-ft)
