Suzuki GSX-R 1000 Service Manual: Front fork inspection

Inspect front fork every 12 000 km (7 500 miles, 24 months)

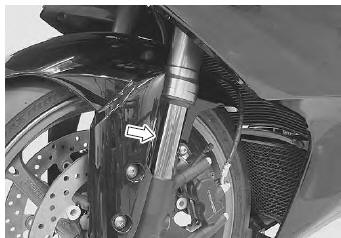

Inspect the front forks for oil leakage, scoring or scratches on the outer surface of the inner tubes.

Replace any defective parts, if necessary. Refer to front fork disassembly and assembly in section 2b .

Suzuki GSX-R. Front fork inspection


Steering system inspection
Inspect steering system initially at 1 000 km (600 miles, 2 months) and every 12 000 km (7 500 miles, 24 months) thereafter Steering should be adjusted properly for smooth turning of handlebars an ...

Rear suspension inspection
Inspect rear suspension every 12 000 km (7 500 miles, 24 months) Inspect the rear shock absorber for oil leakage and check that there is no play in the swingarm. Replace any defective parts, if ...

Other materials:

Evaporative emission control system inspection (only for e-33)
Refer to evaporative emission control system removal and installation (only for e-33) . Hose Inspect the hoses for wear or damage. If it is worn or damage, replace the hose with a new one. Note make sure that the hoses are securely connected. Evap canister Inspect the eva ...

Front fork components
Front fork cap O-ring Rebound damping force adjuster rod Compression damping force adjuster rod Piston rod nut O-ring Piston ring Rod guide case Spring Piston rod Spring collar b Spring Spring collar a Slide bushing Outer tu ...

Oil jet removal and installation
Piston cooling oil jet Removal Remove the engine assembly. Refer to engine assembly removal in section 1d .  Remove the crankshaft assembly. Refer to engine bottom side disassembly in section 1d (page 1d- 49).  Remove the piston cooling oil jets (1) from the upper cra ...
