Suzuki GSX-R 1000 Service Manual: Gearshift shaft / gearshift cam plate components

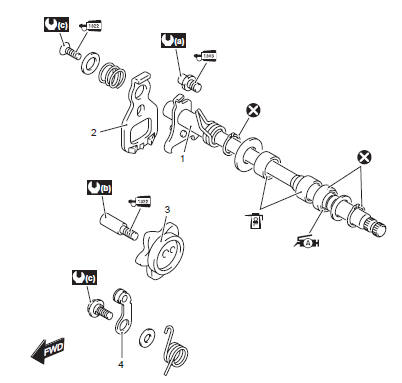

  1. Gearshift shaft
  2. Gearshift cam drive plate
  3. Gearshift cam plate
  4. Gearshift cam stopper
  5. 19 N·m (1.9 Kgf-m,
    13.5 Lbf-ft)
  6. 13 N·m
    (1.3 Kgf-m, 9.5 Lbf-ft)
  7. 8.5 N·m
    (0.85 Kgf-m, 6.0 Lbf-ft)

Apply grease to oil
seal lip.

Apply thread lock to the
thread part.

Apply thread lock to the
thread part
Apply engine oil to
bearing.

Do not reuse.

Gearshift lever height inspection and adjustment
Inspect and adjust the gearshift lever height in the following procedures:  inspect the gearshift lever height “a” between the lever top and footrest. Adjust the gearshift lever height i ...

Gearshift shaft construction
Gearshift shaft Washer Snap ring Gearshift shaft return spring Gearshift cam drive plate Gearshift plate return spring 8.5 N·m (0.85 Kgf-m, 6.0 Lb ...
