Suzuki GSX-R 1000 Service Manual: Service data

Valve + guide unit: mm (in

Suzuki GSX-R. Service data

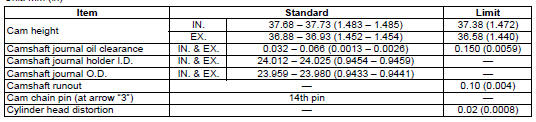

Camshaft + cylinder head unit: mm (in

Suzuki GSX-R. Service data


Cylinder + piston + piston ring unit: mm (in)

Suzuki GSX-R. Service data

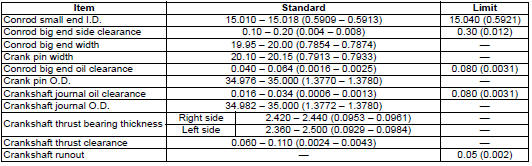

Conrod + crankshaft unit: mm (in)

Suzuki GSX-R. Service data


Balancer unit: mm (in)

Suzuki GSX-R. Service data


Throttle body

Suzuki GSX-R. Service data


Specifications
...

Tightening torque specifications
Note the specified tightening torque is described in the following. “Throttle cable routing diagram”  “throttle body components”  “throttle body construction”  “e ...

Other materials:

Accessory installation guideline
Install aerodynamic affecting accessories, such as a fairing, windshield, backrests, saddlebags, and travel trunks, as low as possible, as close to the motorcycle and as near the center of gravity as is feasible. Check that the mounting brackets and other attachment hardware are ...

Crankcase breather (pcv) hose / reed valve / cover removal and installation
Removal Lift and support the fuel tank with the prop stay. Refer to “fuel tank removal and installation” in section 1g .  Remove the air cleaner box. Refer to “air cleaner box removal and installation” in section 1d .  Disconnect the crankcase breather (pcv) hose (1). ...

Cam chain guide / cam chain tensioner removal and installation
Removal Remove the cylinder head cover. Refer to “engine top side disassembly” .  Remove the cam chain guide no. 2 (1). Remove the cylinder head. Refer to “engine top side disassembly”  and “engine bottom side disassembly” .  Remove the starter clutch. Refer to “s ...
