Suzuki GSX-R 1000 Service Manual: Gearshift lever construction

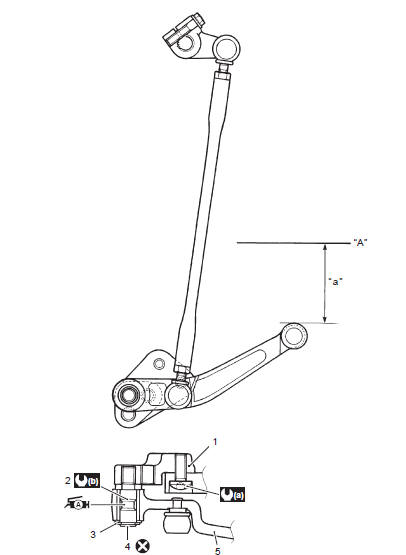

Suzuki GSX-R. Gearshift lever construction



  1. Gearshift lever bracket
  2. Gearshift lever shaft
  3. Washer
  4. Snap ring
  5. Gearshift lever
  6. Footrest top surface
  7. 65 – 75 Mm (2.6 – 3.0 In)
  8. 28 N·m (2.8 Kgf-m,
    20.0 Lbf-ft)
  9. 40 N·m
    (4.0 Kgf-m, 29.0 Lbf-ft)

Apply grease.


Grease.
